Laser tube cutting machines
Precision Tube and Pipe Cutting Solution

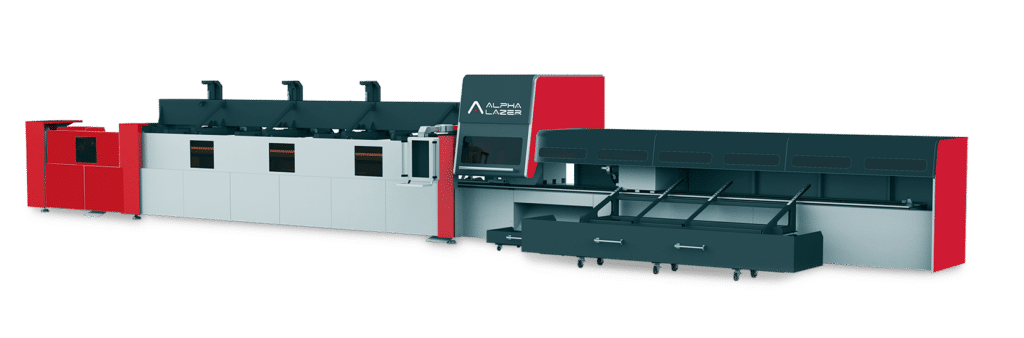

Fiber Tube - Tube Laser Cutting

Our automated tube laser cutting systems offers short processing times for a wide range of tube sizes and profiles thanks to a specifically designed cutting system. The system can support diameters from 19mm to 500mm. Process all HSS round, square, rectangular pipe and tubes along with, H, C, U and L shapes. Options of 3 or 4 chucks, depending on the length and max diameter as well as bevel are also available.

Tube & Pipe Cutting Solutions with Automatic Loading and Unloading

TOP-OF-THE-LINE STANDARD FEATURES

  • Processes Round, Square, Rectangular, Pipes and Tubes, C, U and L-Beams
  • IPG Photonics Laser Source: 3kW to 6kW
  • Siemens Controller, Drives and Motion
  • Lantek Flex 3D CAD/CAM Nesting Software
  • Precitec Laser Cutting Head
  • Vantherm High Efficiency Dust Collector (optional)
  • Rigid, Steel, Welded Frame
  • CSA / UL Approved

IDEAL FOR THESE INDUSTRIES:

Our tube cutting equipment can handle a wide range of laser cutting applications
including sheet metal fabrication, pipe and tube, to fine machining fabricators.

  • Aerospace
  • Construction
  • Medical
  • Furniture
  • Energy and Utilities
  • Manufacturing
  • Rail and Transportation
  • Fitness Equipment
  • Many More.

TECHNICAL DATA:

  • Loading Lengths: 24′
  • Unloading Lengths: 12′, 13′
  • Pipe Diameter Range: 3/4″ to 8 5/8″
  • Square Tube Diameter Range: 1″x1″ to 6″x6″
  • Max. Tube Weight: 16 lb/ft
  • Repeatability: 0.002″
  • Positioning Accuracy: 0.002″

WIDE RANGE OF OPTIONS AVAILABLE:

  • Loading/Unloading System up to 40′ long
  • Unloading Conveyors
  • Increased Round Diameter to 19 5/8″
  • Heavy Loading up to 3,300 lbs
  • Tilt Bevel Head (± 45°)
  • Heavy Chain Loading System
  • Automatic Bundle Loading System

Your journey with Alpha Lazer

Our specialists will assist you from project infancy to machine installation and beyond.

Step 1

Fabrication requirements

With Alpha Lazer, you can be sure to find the right solution for your needs thanks to our knowledgeable automation specialists and our complete range of cutting and bending solutions.

Swipe for More
Step 2

Finding the right solution together

Having understood your specific production requirements, we will propose the perfect machine size and power specifications, ensuring you receive exactly the equipment you require.

Swipe for More
Step 3

On-site installation and training

As your committed partner, we include on-site installation of your new Alpha Lazer system, followed by comprehensive specific training on its operation

Swipe for More
Step 4

The Alpha Lazer after-sales experience

Your purchase includes free remote support for the lifetime of your machine. We are always available.

Swipe for More

Machitech Group By the Numbers

Alpha Lazer is part of the Machitech group, a leading manufacturer of automated cutting equipment that can take your metal fabrication shop to the next level. Contact us today to experience the exceptional service that has made us a renowned name in the industry.

+
Years of Experience
+
Machines installed
%
Customer Satisfaction
reviews

ACCU-CUT LASER

SURREY, BC, CANADA

Kerns Punia, owner of AccuCut Laser located in Surrey, Canada, explains why he chose Alpha Lazer™ and the Fiber PRO 3015 6kW fiber laser cutting system.

reviews

BALDWIN METALS

DALLAS, TX, USA

"Alpha Lazer exceeded our expectations with their high-quality Fiber Laser machine and exceptional customer support. I highly recommend them for any manufacturing needs." Tom Johnson, owner of Baldwin Metals in Dallas, Texas

Swipe For More

World Class Partners

Alpha Lazer’s fiber laser cutting machines feature some of the most advanced components the industry has to offer. We’re proud to partner with these highly regarded suppliers.

We Provide Peace of Mind

We provide peace of mind… so you can focus on growing your business. At Alpha Lazer, our commitment is to provide our customers with unmatched service. Choosing Alpha Lazer means gaining access to top-quality equipment, direct contact with our team of experts, specialized assistance, and prompt technical support. In summary, we are there for you when you need us the most. Large inventory of parts / On-site installation and training / Lifetime remote technical support

Contact Us Today for a Free Quote

(800) 708-6036
