Press Brakes
Wide range of hydraulic and electric press brakes from 40 to 2,000 tons

Hydraulic and Electric Press Brakes

Alpha Lazer offers a large range of CNC press brakes, spanning from 40 to 2,000 tons, Hydraulic or Electric. Featuring innovative technology and features designed to enhance productivity, such as advanced CNC controls from Delem, intelligent bending aids, and automation capabilities. Even more important, you get direct access to our experts, help from our technicians right on the factory floor, and fast technical help — in short, the most accessible and effective support the industry has to offer.

Wide range of press brakes from 40 to 2,000 tons

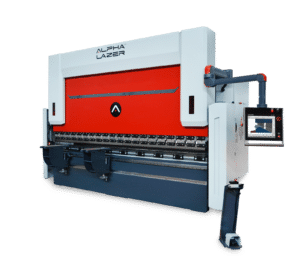

STANDARD FEATURES – ELECTRIC PRESS BRAKES

  • Servo electric press brake, energy efficient
  • Capacity from 40 to 200 tons
  • Delem 66S CNC controller, easy to use
  • Linear guided front support arms
  • Multi-step finger design
  • Back Gauge Axis (X-R-Z1-Z2)
  • CNC crowning for maximum accuracy
  • Safety fence door and laser front protection
  • Low maintenance design
  • Quiet operation
  • CSA approval
  • On-site installation and training included

Download our press brake brochure

STANDARD FEATURES – HYDRAULIC PRESS BRAKES

  • Hydraulic motor press brake
  • Capacity from 40 to 2000 tons
  • Delem 66S CNC controller, easy to use
  • Hydraulic oil cooling system
  • Linear guided front support arms
  • Multi-step finger design
  • Back Gauge Axis (X-R)
  • CNC crowning for maximum accuracy
  • Safety fence door and laser front protection
  • CSA approval
  • On-site installation and training included

Download our press brake brochure

HYDRAULIC PRESSES

Tonnage and bend lengths (imperial)
  • 66 tons: 5′, 6′
  • 110 tons: 8′, 10′
  • 150 tons: 10′, 12′
  • 190 tons: 10′, 12′, 13′
  • 250 tons: 10′, 12′, 13′, 20′
  • 350 tons: 10′, 12′, 13′, 20′
  • 450 tons: 13′, 20′
  • 550 tons: 13′, 16′, 20′
  • 660 tons: 13′, 20′
  • 770 tons: 13′

ELECTRIC PRESSES

Tonnage and bend lengths (imperial)
  • 44 tons: 5′
  • 55 tons: 6′
  • 88 tons: 8′
  • 110 tons: 10′
  • 145 tons: 10′
  • 165 tons: 10′
  • 190 tons: 12′
  • 220 tons: 13′

OPTIONAL FEATURES

  • Delem 69S CNC controller, 3d drawing and profiling capabilities
  • Robotic Brake Press Tending System
  • CNC sheet support followers
  • Real time production monitoring
  • 4 Axis Back Gauge (X-R-Z1-Z2)
  • 5 Axis Back Gauge (X1-X-R-Z1-Z2)
  • 6 Axis ATF Back Gauge (X1-X2-R1-R2-Z1-Z2)
  • Additional day/light stroke
  • Additional throat depth
  • Automatic pneumatic clamping
  • Tandem press brake configurations
  • Laser angle measuring device

HYDRAULIC OR ELECTRIC PRESS BRAKE?

  • Workload and Material Types: Hydraulic press brakes can handle higher tonnage so are mostly used for thicker or harder materials (40 to 2000 tons). Electric press brakes are more suitable for lighter or medium-duty applications and are more efficient for bending thinner materials (40 to 200 tons).
  • Precision and Control: Electric press brakes typically offer more precise control over the bending process due to their servo-driven technology. If your operations demand high accuracy and repeatability in bending, an electric press brake might be a better choice.
  • Energy Efficiency: Electric press brakes are generally more energy-efficient compared to hydraulic ones. By using 100% electrical power instead of hydraulic oil, it minimizes pollution and reduces environmental impacts.
  • Maintenance and Operating Costs: Hydraulic press brakes have higher maintenance requirements due to the hydraulic systems involved. Electric press brakes have fewer moving parts, which translate to lower maintenance costs over time.
  • Speed and Productivity: When compared to Hydraulic, Electric press brakes demonstrates a speed improvement of 30% thanks to its ability to quickly change directions. Its lower maintenance schedule also reduces downtimes and improves productivity.
  • Initial Investment and Budget: Electric press brakes can have a higher initial cost compared to hydraulic models. Consider your budget and the long-term operational cost savings associated with each type when making a decision.
  • Operating Safety: Having no hydraulic parts, the Electric press brakes operates silently, providing a quiet working environment. Both features industry standard safety features to protect the operators.
